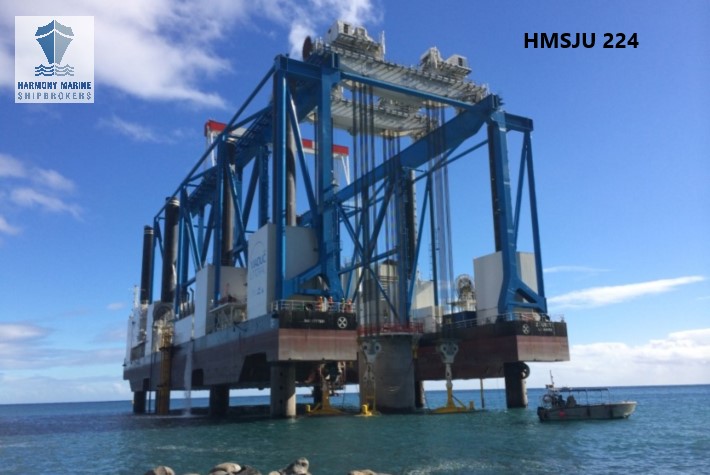

HMSJU 224: Self Propelled Heavy Lift Jack Up Barge for sale

  • Class: Bureau Veritas -I + HULL + MACH “Offshore self-elevating unit – Lifting / Accommodation”, La Réunion Coastal area, Transit – Specific area,  DYNAPOS AM/AT
  • Next Special Survey: 24/03/2021
  • Published On: 18 October, 2018
  • Vessel Type: Jack-ups, Monohull
  • Region: East Africa
  • Location: Reunion Island

Harmony Marine are  brokers for the sale of this exceptional  self propelled, 8 leg -Heavy Lift – Jack Up Barge, which has one of the worlds largest marine gantry cranes, with 4,800 t lifting capacity. This bespoke construction Jack Up  vessel was designed specifically for bridge & causeway construction, however its huge lifting capacity, combined with 25 m x 25 m moon-pool and its own on-board concrete batching plant make this unit the world leading Jack Up barge for all manner of marine construction projects

Main Features

  • 108 m x 47.5 m, one of the worlds largest Jack Up Barges
  • 1,875 m deck space
  • 4,730 t deck load capacity
  • 4,800 t capacity Overhead Gantry crane with 4 x 1,200 t hooks (Enerpac IS)
  • 4 x 900 kW Schottel thrusters (service speed 3.5kts)
  • 4 x 1,200 kW installed power (Caterpillar)
  • DP 1 positioning system (upgradeable to DP2)
  • 4 x 40 t mooring winches
  •  8 x 55 m legs with 25 m2 spud-cans & Jetting System (max operating depth 36 m)
  • Retractable Boat Landing
  • Concrete batching plant (50 m3/hr) with 135 m3 silo
  • Grouting Plant (20 m3/hr)
  • Mess Room for 30 persons / Meeting Room (16 persons)/ 5 Offices/ Infirmary/ Changing Room -40 persons (male)/ Changing Room -8 persons (Female)/ Male & Female Showers & Toilets
  • 2 x Single & 6 x Double Cabins
  • 2 x Workshops fitted with lathes etc

Price on application

Vessel Specs

Year Built: 2016
Dimensions (LOA x B x D): 108.0 x 47.5 x 5.05
DP Class: DP 1
Propulsion: ASD (Azimuth Stern Drive)

Additional Specs for this Vessel Type

Deckload (m): 4,730
Deckspace (m2): 1,875
Leg Length: 55.0
Crane: ENERPAC IS Gantry Crane 4,800 t capacity, Auxilliary overhead crane 25 t, Manitowoc M1200 Crawler crane
Accommodation: 12
Other: Concrete Batching plant / 4 x 40 t mooring winches
